Copy Files From You Local Computer To An Azure VM and Back

Do you need to copy files from your local workstation to Azure Virtual Machines? No need to use FTP, or send files on cloud drives or blobs. The only thing you need to do is to access your local drives from your cloud VM and pull the files over. You can also use the same approach to pull files from your cloud VM locally. Here is how it’s done.

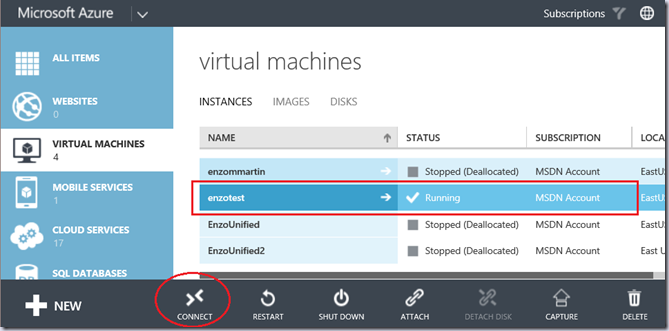

First, logon to Microsoft Azure and browse to your Virtual Machine from the portal. From there, select your Virtual Machine and click on the Connect button at the bottom (make sure you select your VM first by clicking on the status field for example so that the VM clearly shows with a darker blue background).

AzureMgmt

After clicking on Connect, you will be prompted to Open or Save the RDP file for the remote session to your VM. Click on Save, and click on Open folder once the save operation is complete.  This will open the directory where the RDP file was saved and automatically select the file for you.

Save

SaveComplete

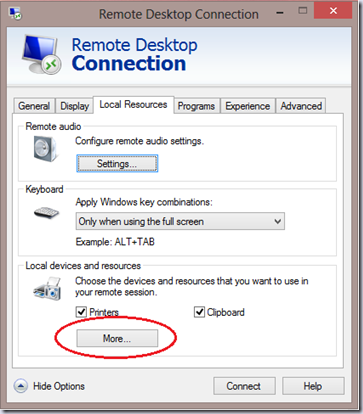

Right-click on your RDP file, and choose Edit from the dropdown menu. You will see the Remote Desktop Connection configuration window. Click on the Local Resources tab, and in the Local devices and resources section, click on the More… button.

RemoteLocalResources

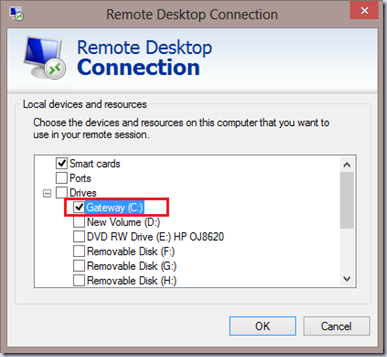

Expand the Drives and click on the local drives you want to share from within your Virtual Machine (I selected my C drive), then click OK.

LocalDrives

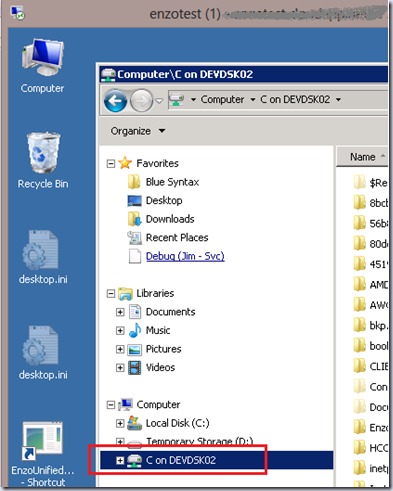

Finally, click on the Connect button to logon to your Virtual Machine. Once logged on, you will see your local drive available from within Explorer as a mapped drives as shown below. You can now copy and move files from your Virtual Machines in and out of your Workstation easily. Because you can change any RDP file in the same way, you can do the same with virtual machines hosted on other cloud platforms or from your own network.

Explorer
